FX Hydraulic Operated Flip Up Flood Barrier
Brand:
FloodX
Code:
FXHY
Description:

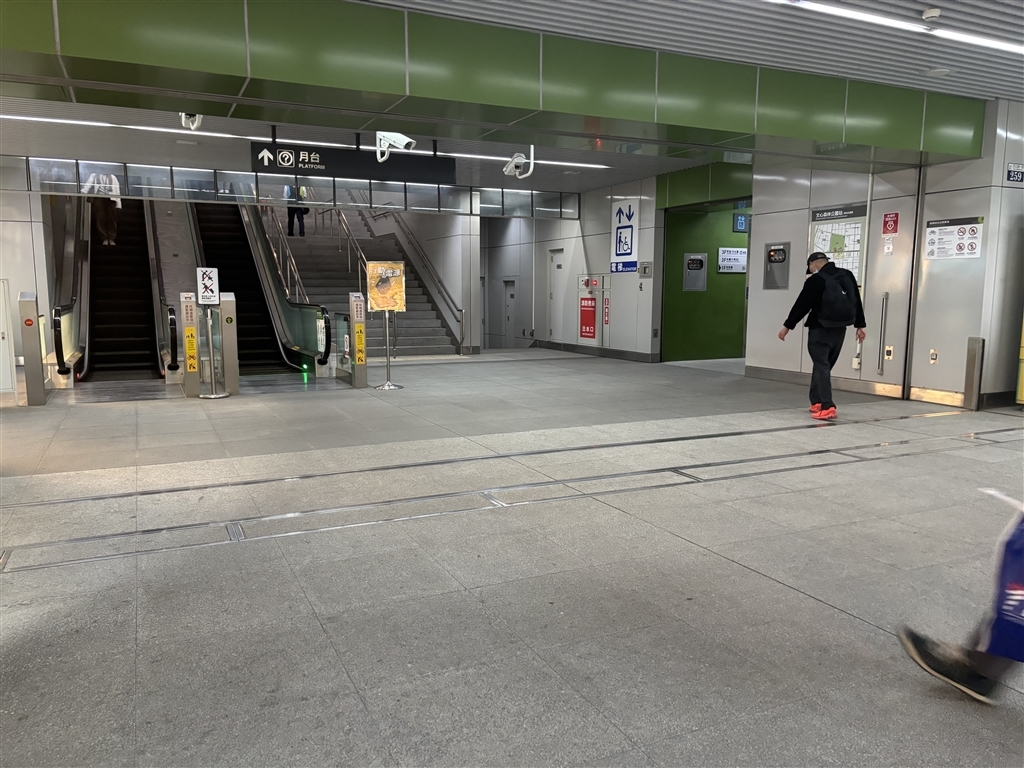

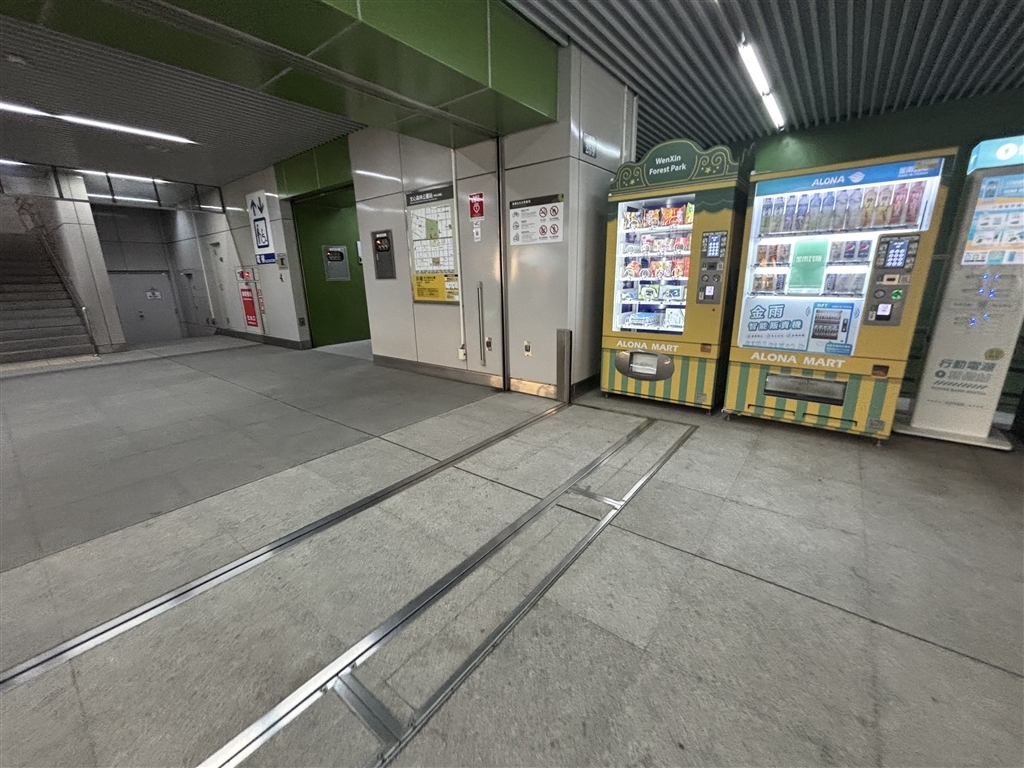

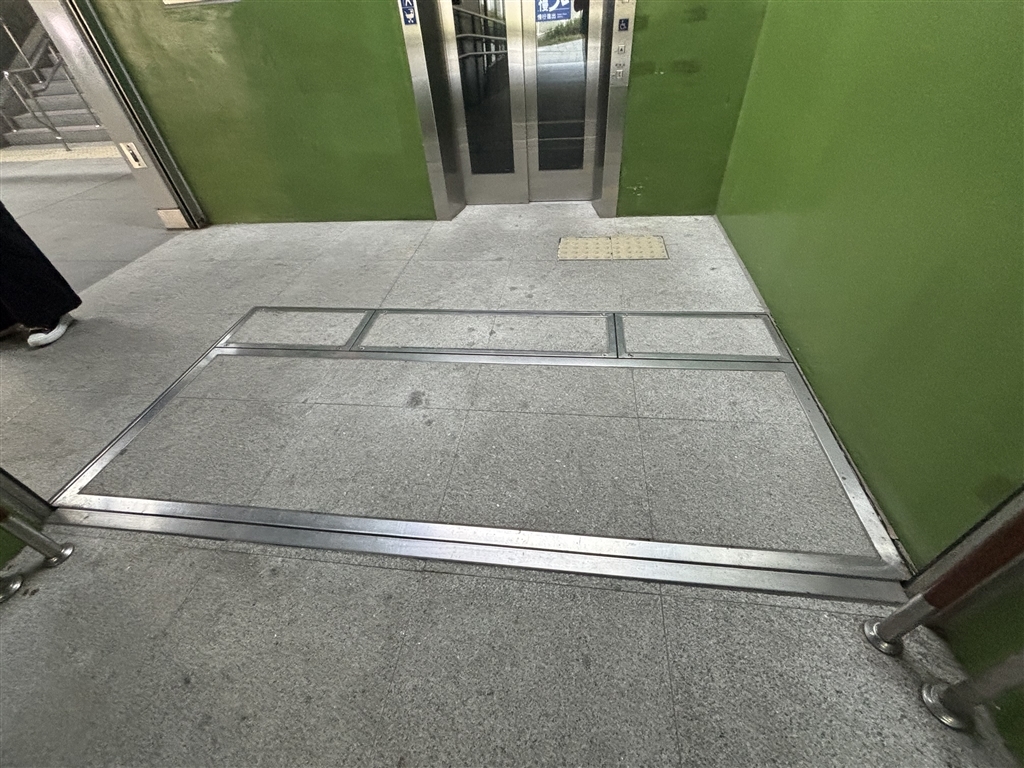

FX Flip Up Hydraulic Flood Barrier lies flushed with the ground under normal conditions and flips up in one-stop motion when activated. Flood barrier system will open to resting position and re-open passage when deactivated by sensor or manual push button when floodwaters recede.
This barrier system is permanently embedded onto the ground and the barrier panel will close to form a seal with 2 no.s 50mmx50mm lateral guides.
In case of power failure, a manual override lets the barrier be raised or lowered. This system provides fast, reliable flood protection with minimal effort and can be customized for different widths and heights.
Coverage:
Opening Width: Customizable
Height: Customizable
Specification:
Structure & Frame: Stainless Steel 304
Surface finishing: Stainless Steel chequered plate pattern
Pit Depth Required: 280 mm (standard)

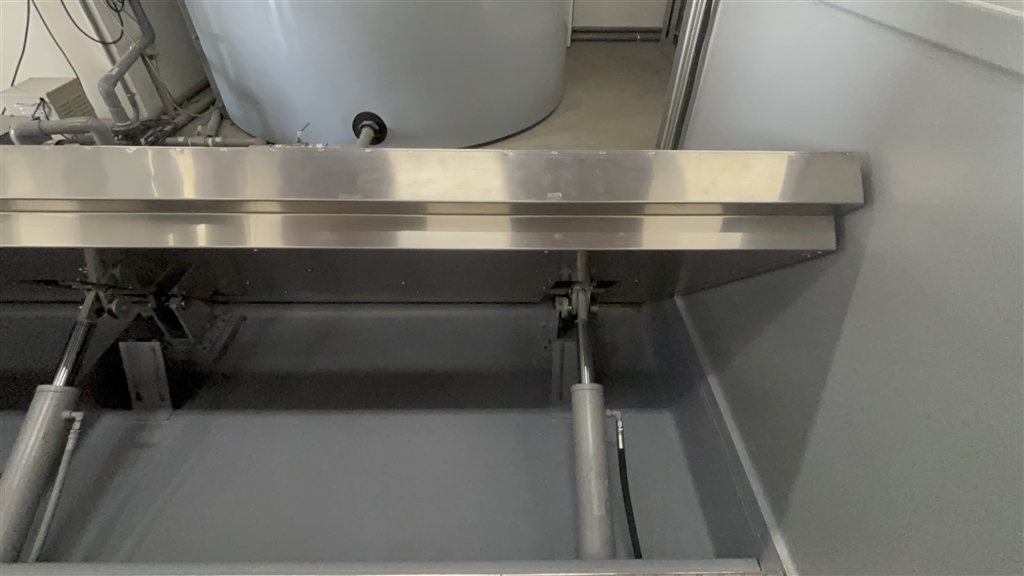

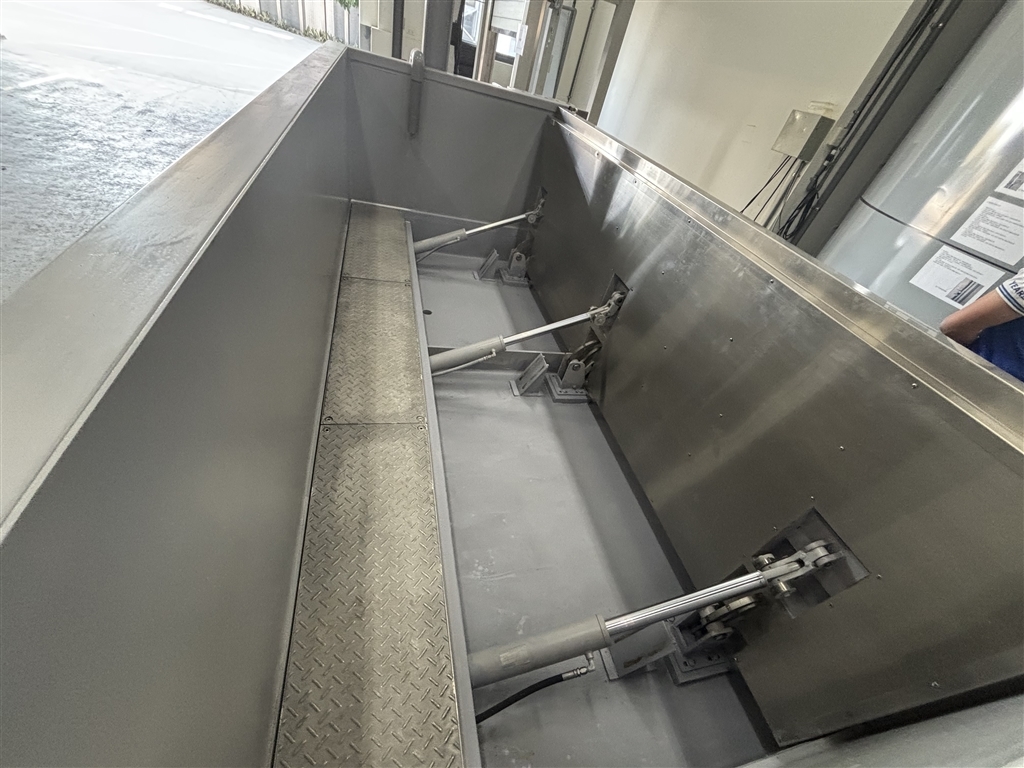

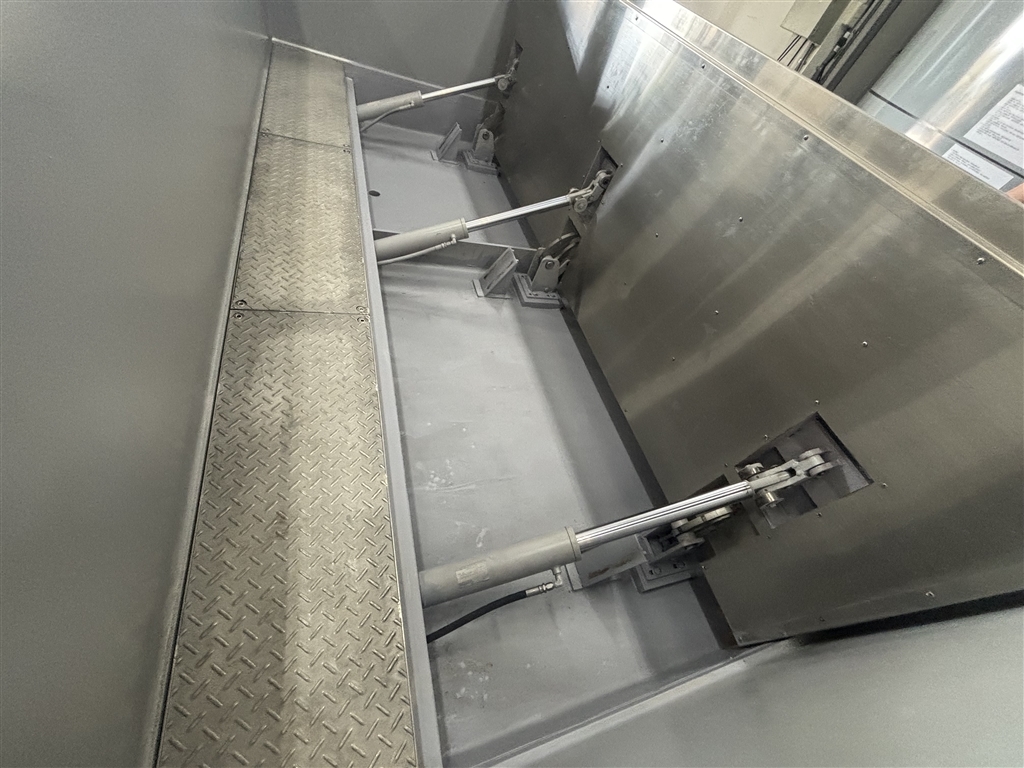

Compression Method: Hydraulic push rod
Activation Method: Automated via flood sensor and/or push-button; Manual option available.
Ease of Use:
Ease of Deployment:
Water Tightness:
Requires Permanent Fixings:
Yes
